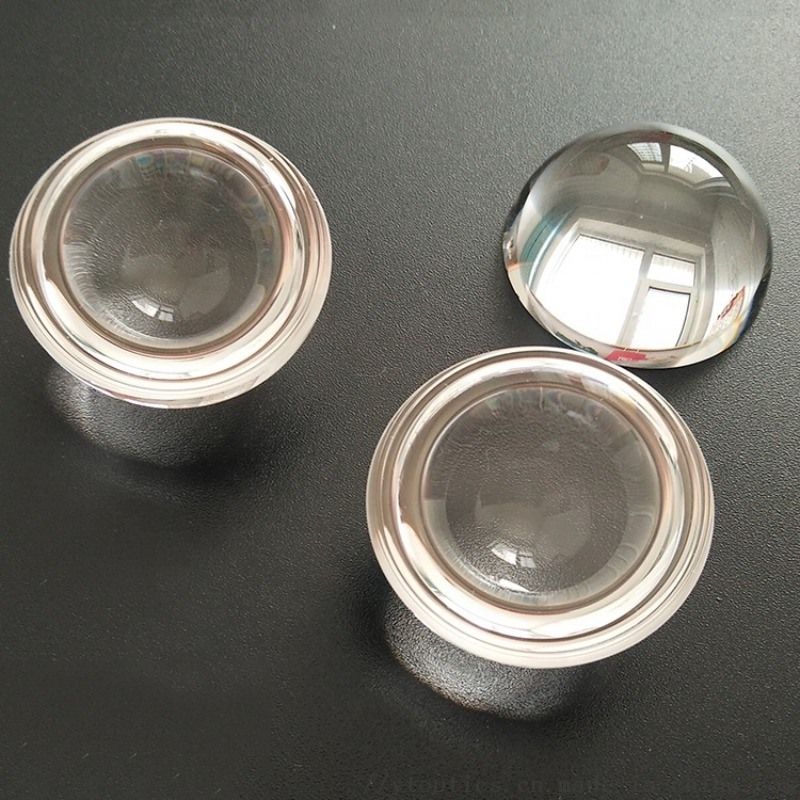

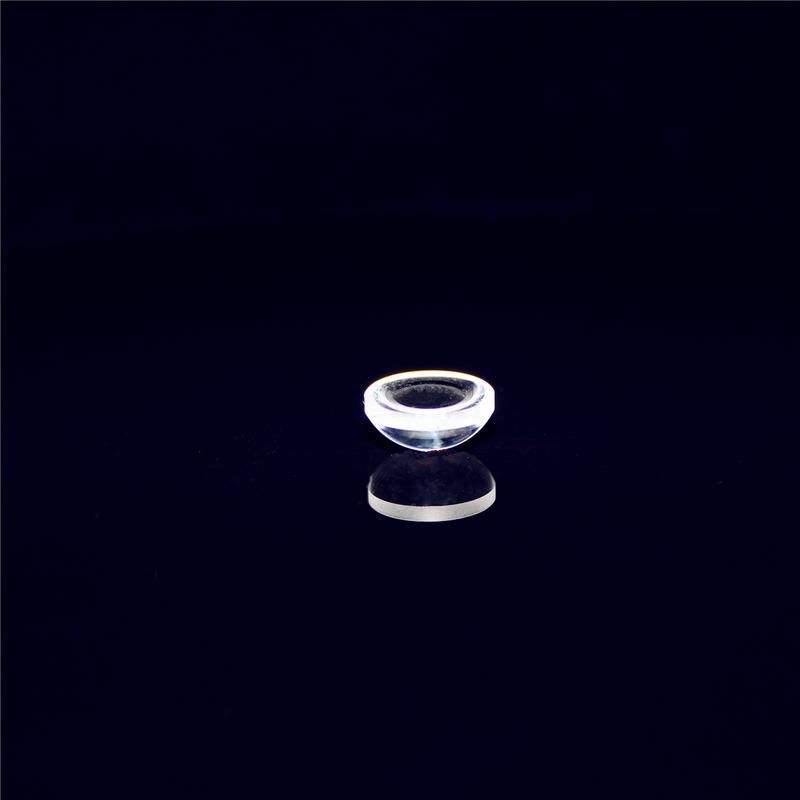

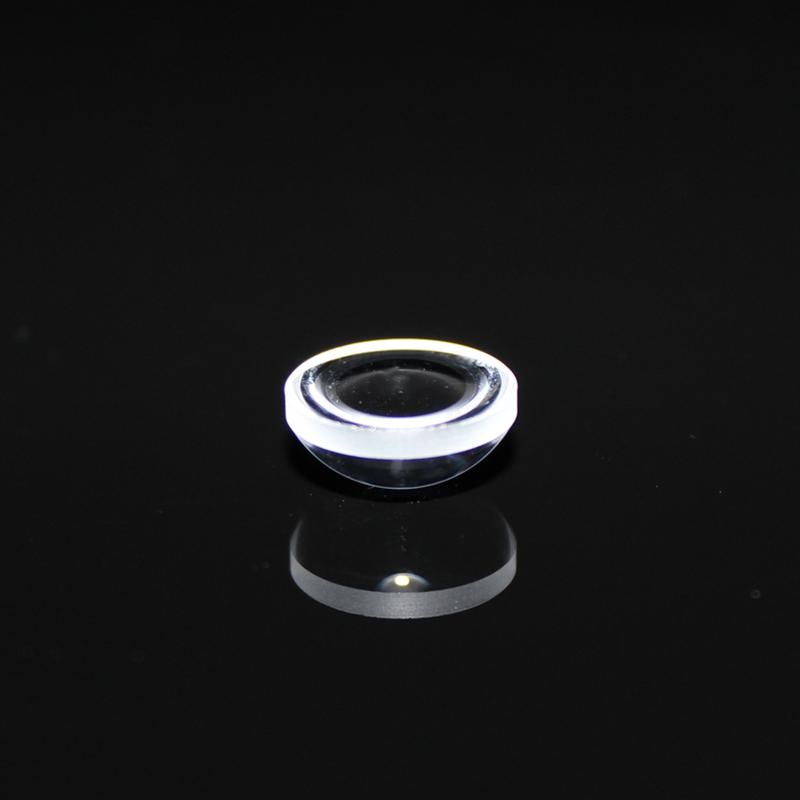

Half-ball lenses, as the name suggests, are spherical optical components composed of half a sphere. Constructed from high-quality optical glass materials, these lenses possess a precisely shaped convex surface, while the other side is flat. This unique configuration allows light to focus or disperse depending on the lens's orientation.

Half-ball lenses exhibit fascinating optical properties, primarily due to their curvature and symmetry. When light passes through the convex surface, it undergoes a process called refraction. Refraction occurs when light transitions from one medium to another, causing the light rays to bend. The bending of light rays enables a range of applications, from focusing light to collimating or dispersing it over a specific area. This versatility makes half-ball lenses valuable tools in various industries, from scientific research to telecommunications.

Half-ball lenses find extensive usage across a multitude of industries, owing to their ability to manipulate light effectively.

1. Optoelectronics

Within the realm of optoelectronics, half-ball lenses are frequently employed in coupling fiber-optics, directing and expanding laser beams, and creating optical systems with enhanced performance. The precision and high-quality optical attributes of half-ball lenses enable optimal light coupling and efficient management of light energy.

2. Biomedical Imaging

Half-ball lenses play a crucial role in biomedical imaging techniques such as confocal microscopy, fluorescence microscopy, and endoscopy. These lenses contribute to focusing light onto a specific region, improving image resolution and providing valuable insights into biological samples.

3. Telecommunications

Telecommunication systems rely heavily on efficient light management. Half-ball lenses facilitate coupling and focusing light in fiber-optic networks and laser diodes, ensuring reliable data transmission and optimal performance.


MaterialBK7, Fused silica, Sapphire,Visible optical glass, Infrared optical glass
Diameter (mm)1-75
Diameter Tolerance (mm)+/-0.05
Thickness Tolerance (mm)+/-0.05
Focal Length Tolerance (%)±1
Surface Quality40/20 Scratch/Dig
Irregularity (P-V)@632.8nmλ/10~λ/2
Clear Aperture (%)>90
BevelProtective bevel as needed
CoatingCustomer design
